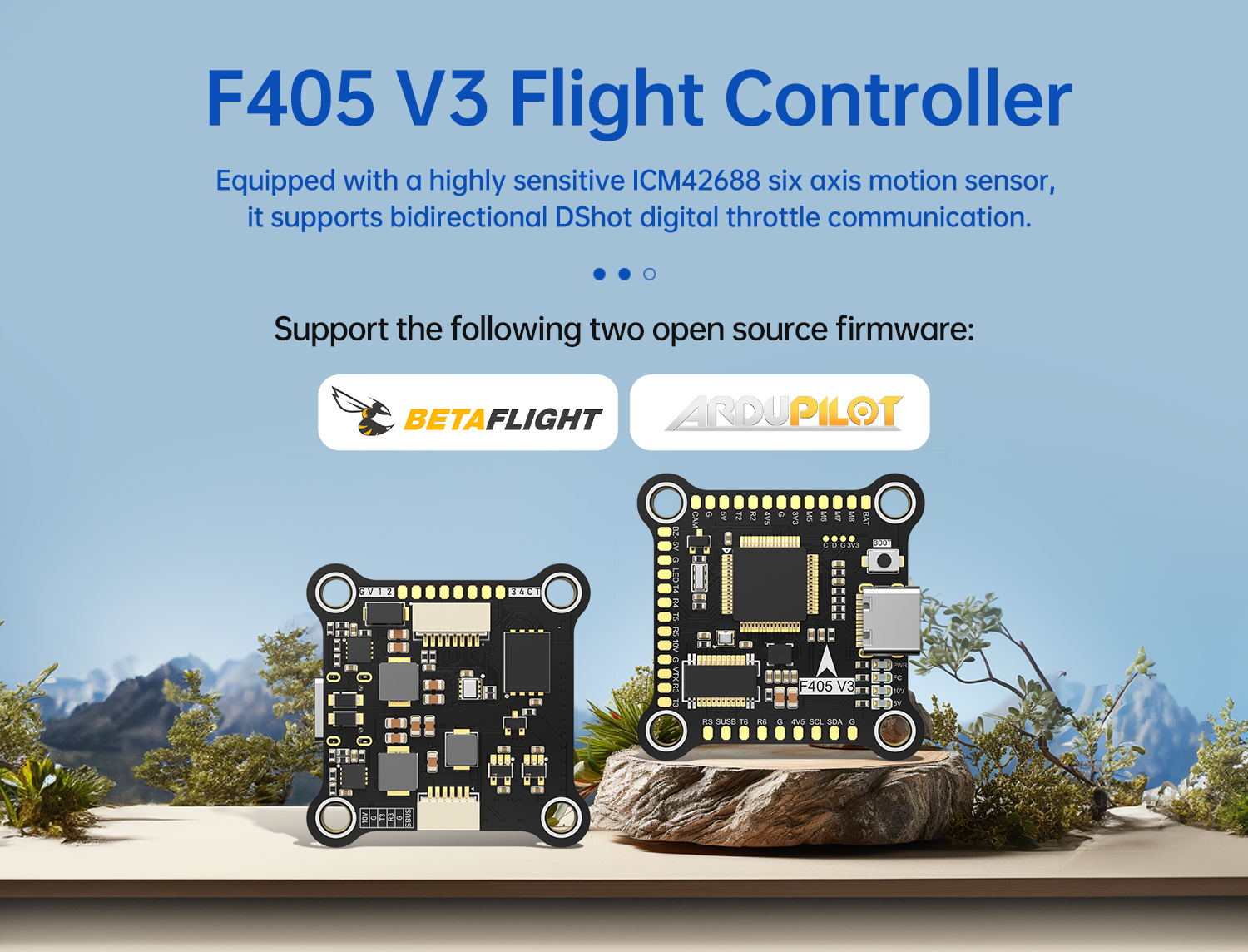

Returner 3-6S F405 V3 Betaflight Flight controller
Sold:9
Have a question?
Price:
USD
USD
$35.00
$40.00
SKU:
Ships From:
Warehouse 1
Quantity:
-
+
(
191
available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you want
X
Inquiry Now
Add to Favorite Items
Description
Reviews
Specifications
CPU:
STM32F405RET6
Input Power:
3S-6S
Dimensions:
38.5*38.5mm(30.5x30.5mm hole diameter 4mm)
IMU:
ICM-42688
OSD:
AT7456E
Barometer:
SPL06-001
Black box:
Support(capacity:16M)
BEC:
5V/2A、10V/2A
DJI:
Supports direct insertion and welding
IIC:
Support
Telemetry:
UART1,UART2,UART3,UART4,UART5, UART6,UART5 is ESC Telemetrv telemetry
USB Port:
TYPE-C
Galvanometer port:
Pad CUR
ESC outputs:
M1-M8
LED:
Support external LED
Target firmware:
betaflight_4.5.0 BROTHERHOBBYF405 V3
Receiving:
Support SBUS,IBUS,DSM2/X,TBS,CRSF
Buzzer:
Yes
RSSI:
Yes
Weigh:
7.82g
