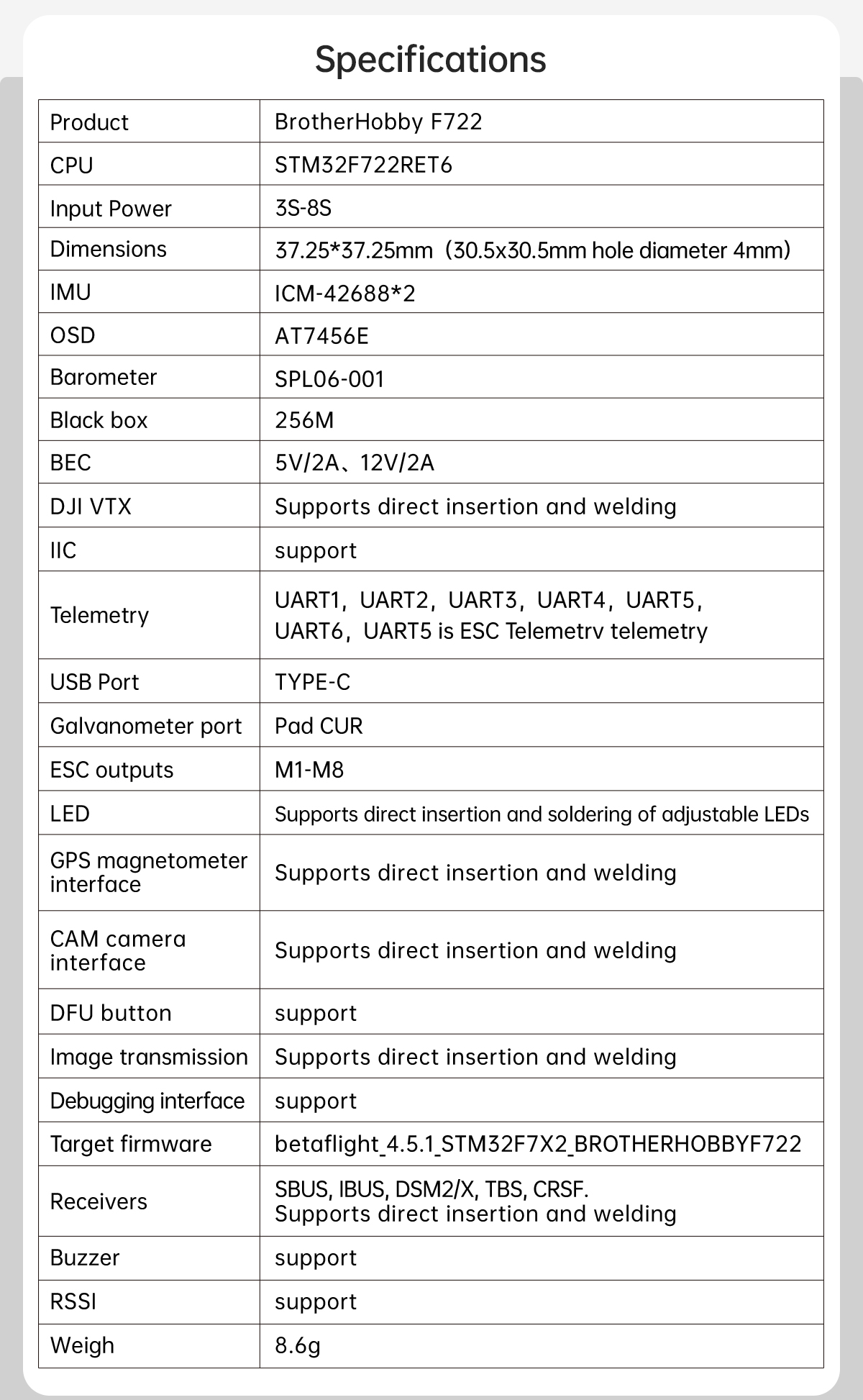

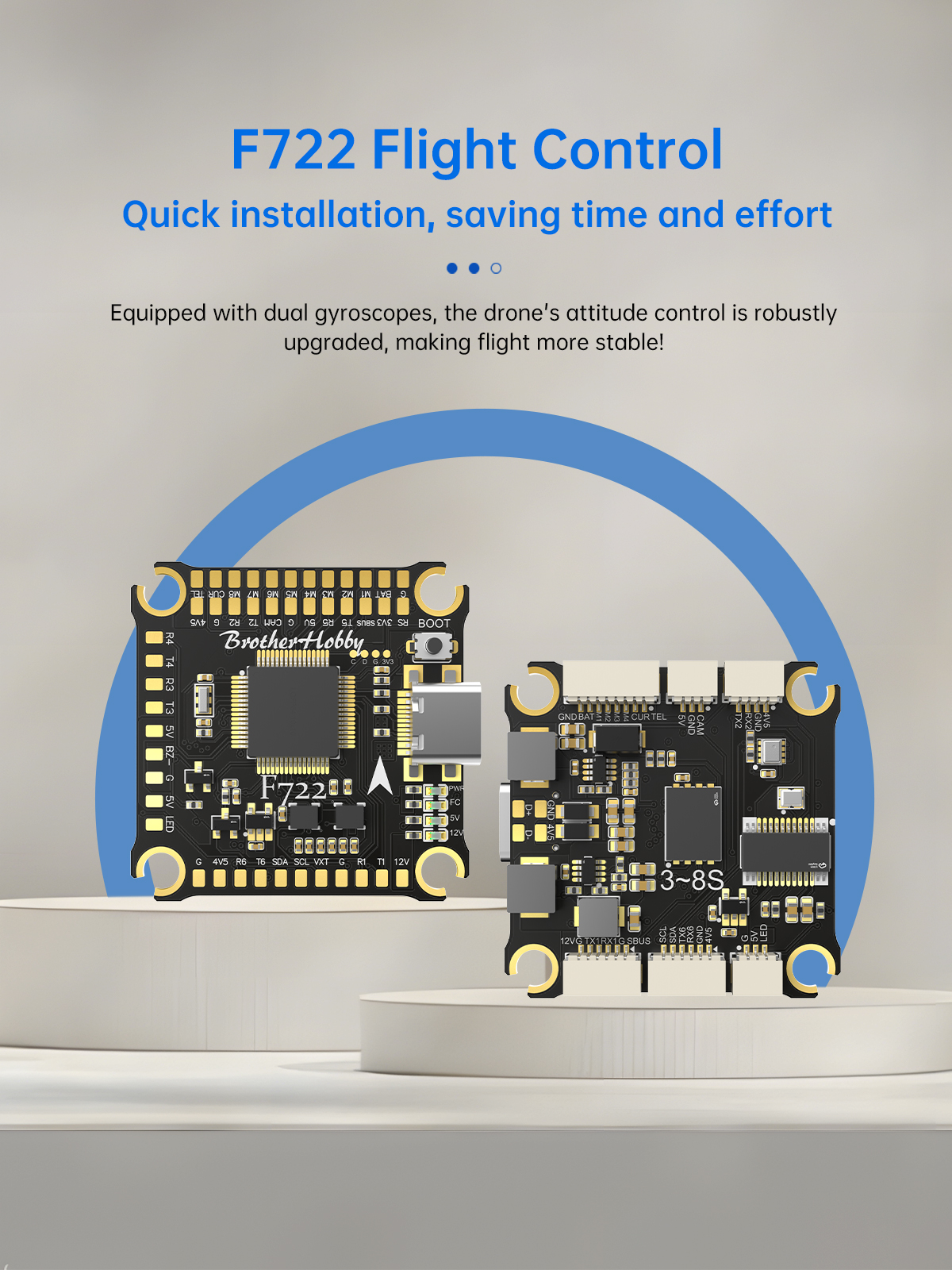

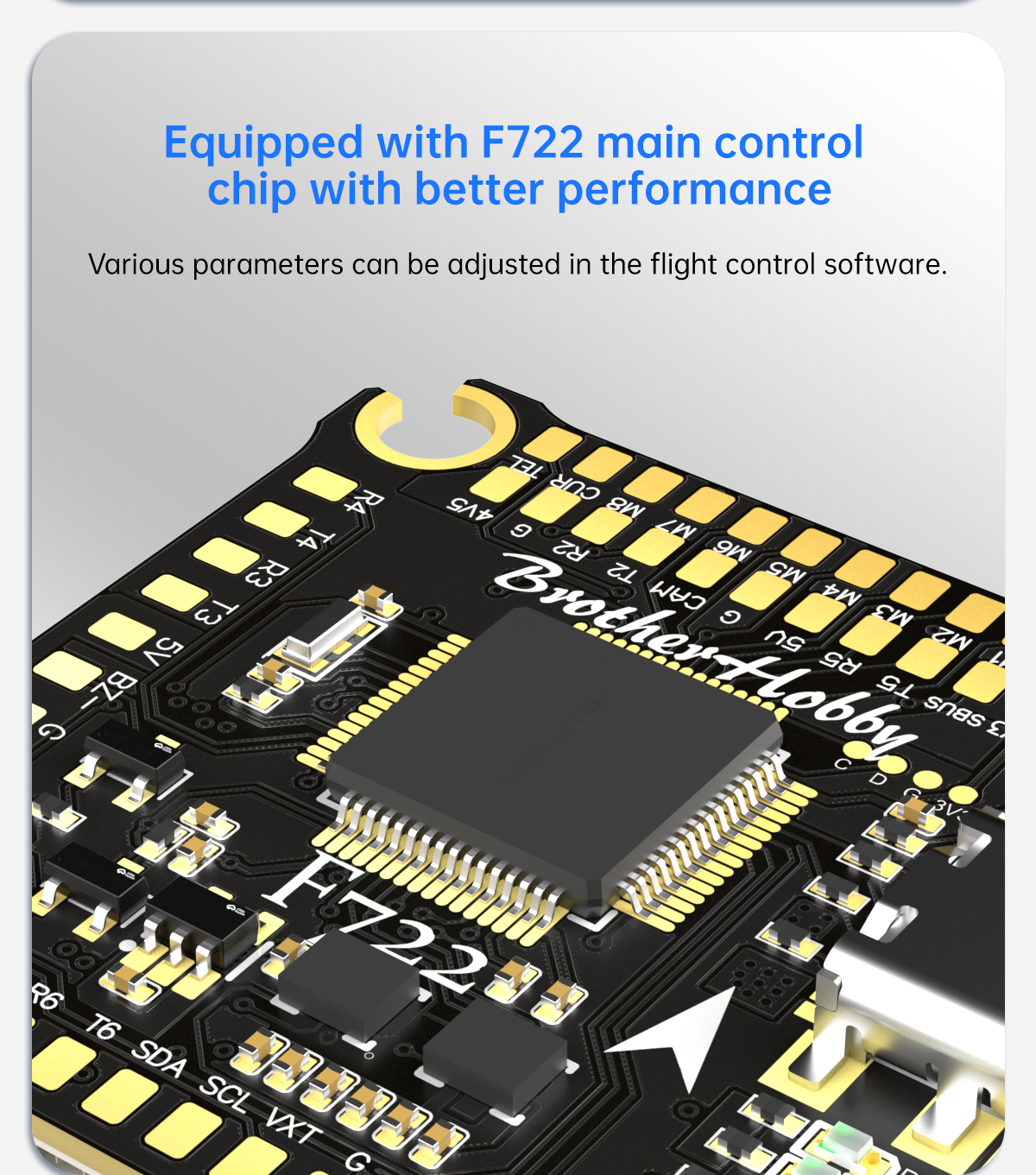

MCU:
STM32F722RET6 Input Power:
3S-8S Dimensions:

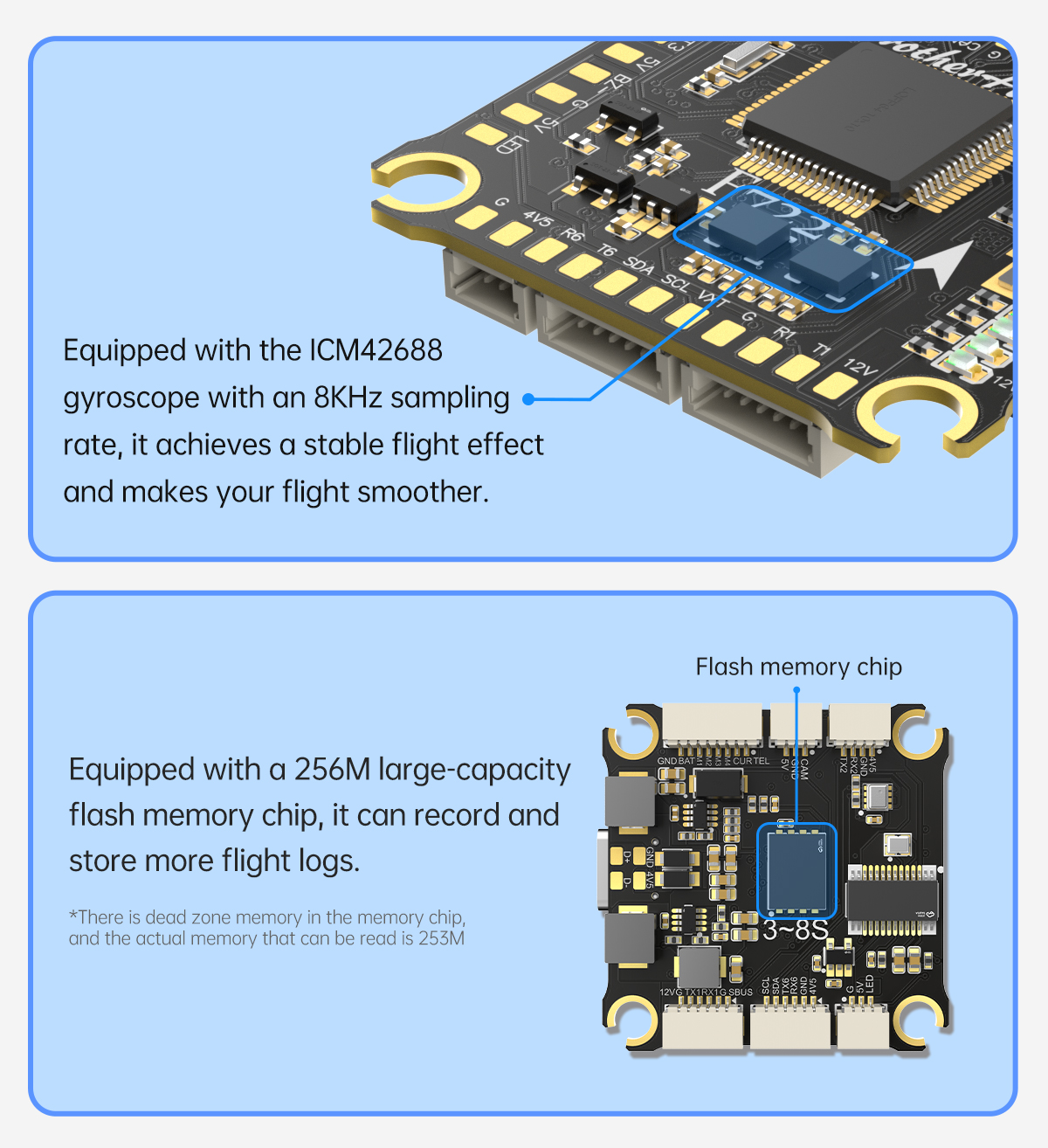

37.25*37.25mm（30.5x30.5mm hole diameter 4mm） IMU:
ICM-42688*2 OSD:

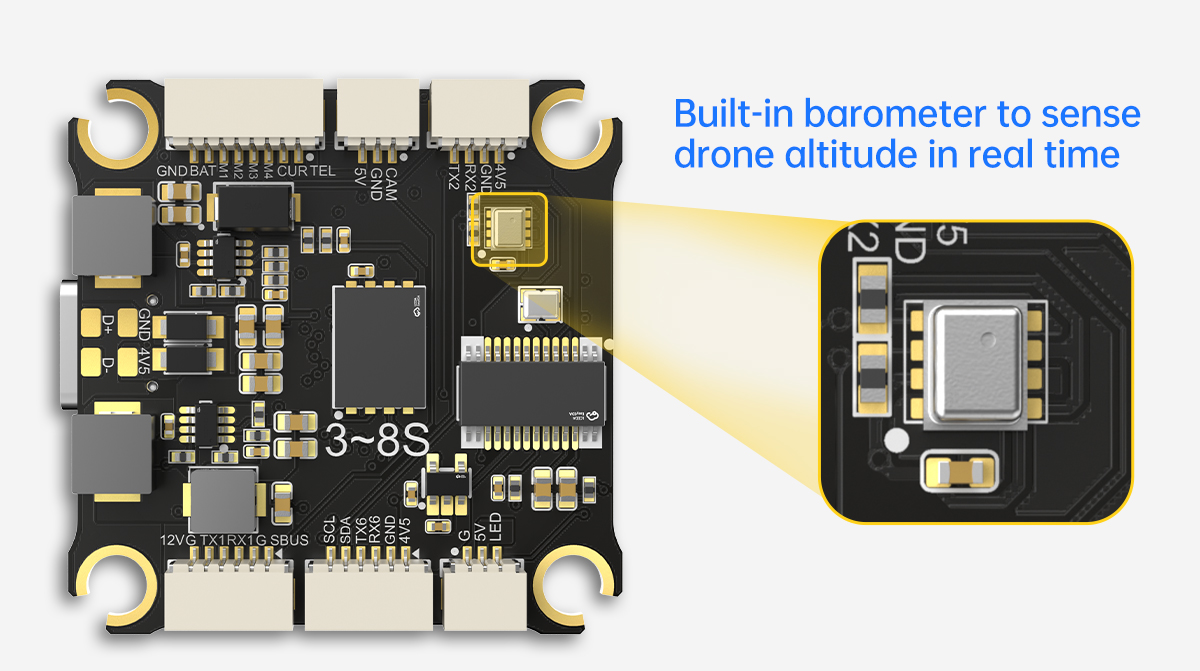

AT7456E Barometer:
SPL06-001 Black box:

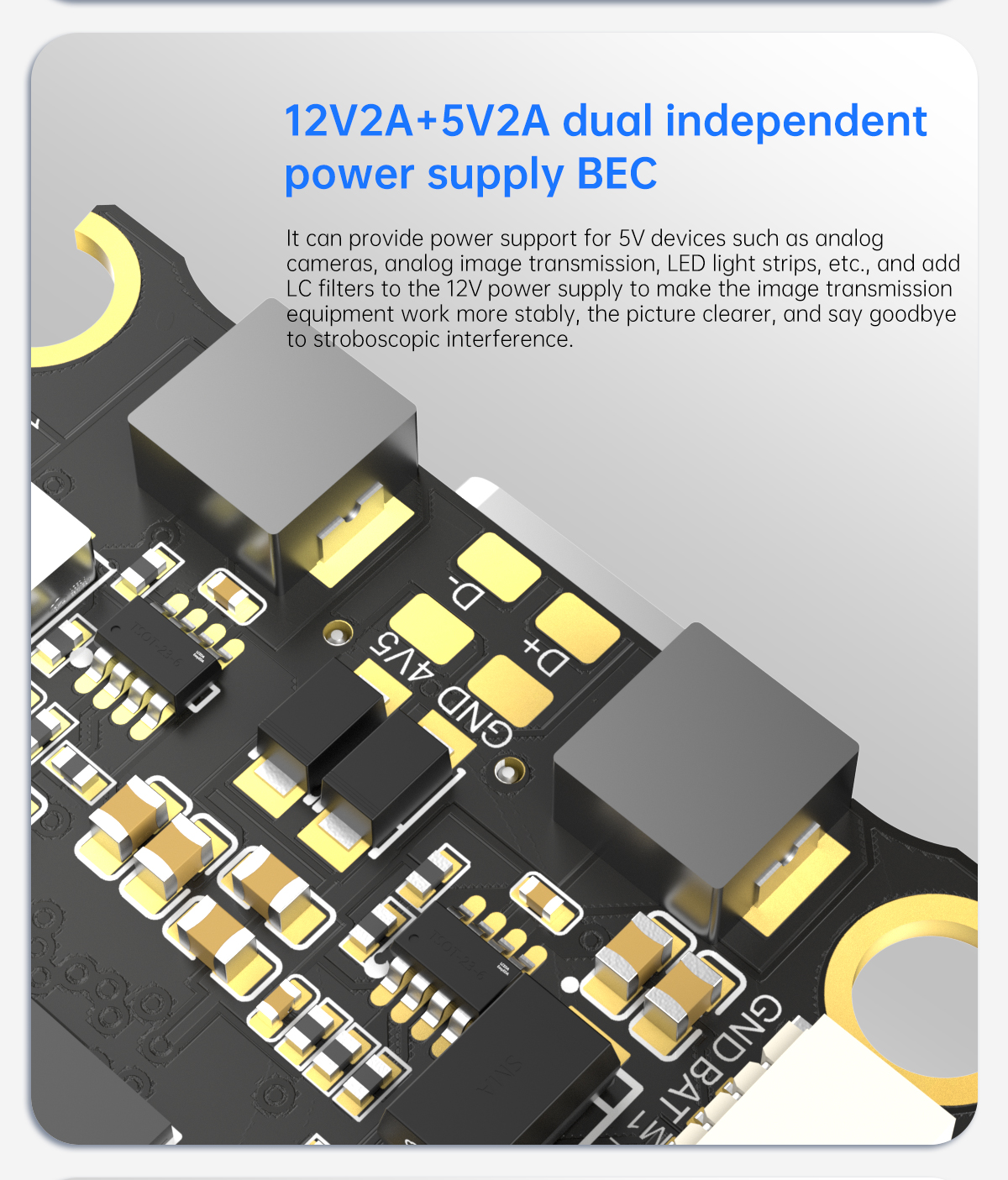

256M BEC:
5V/2A、12V/2A DJI VTX:
Supports direct insertion and welding IIC:
Support Telemetry:
UART1，UART2，UART3，UART4，UART5， UART6，UART5 is ESC Telemetrv telemetry USB Port:
TYPE-C Galvanometer port:

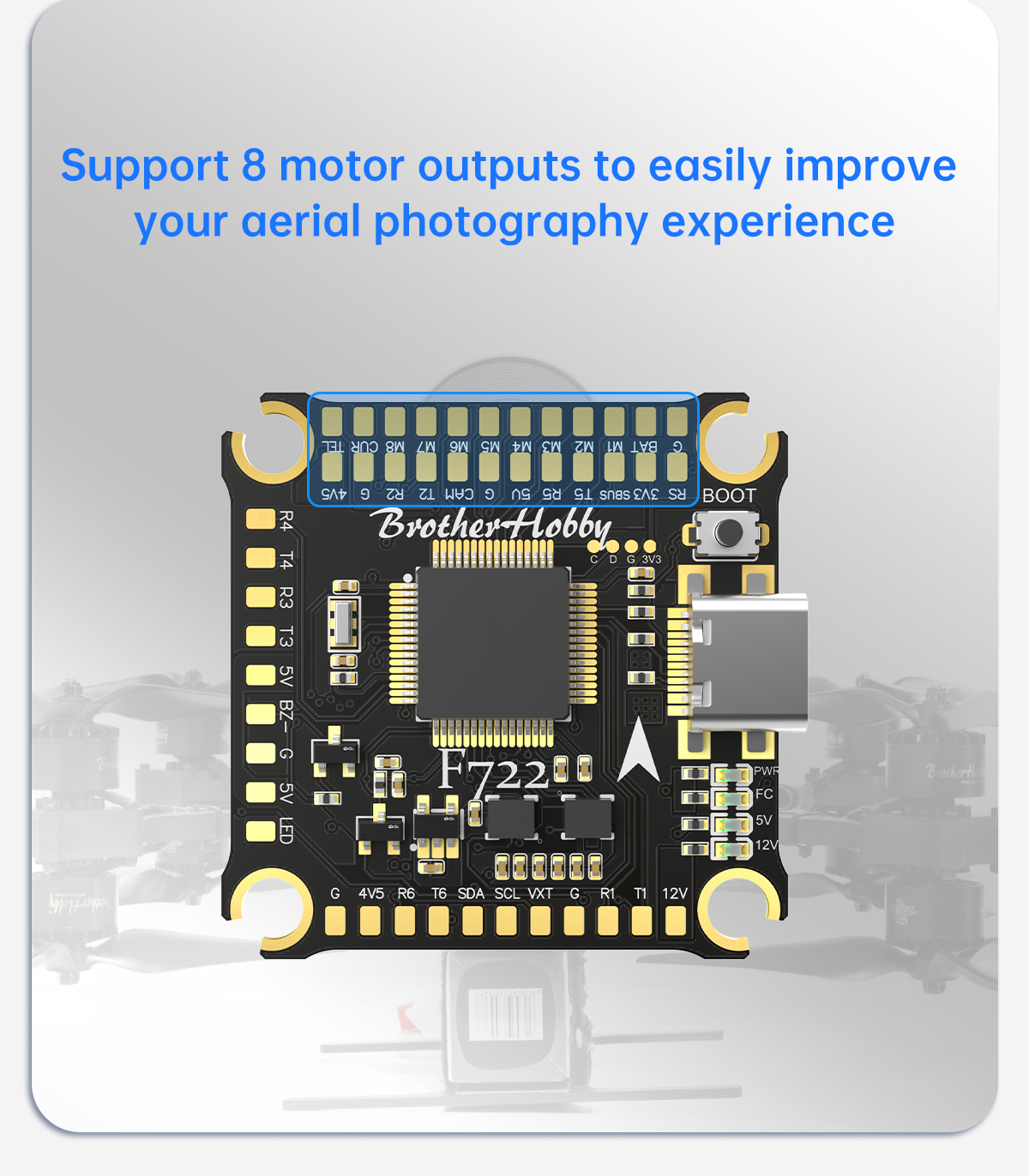

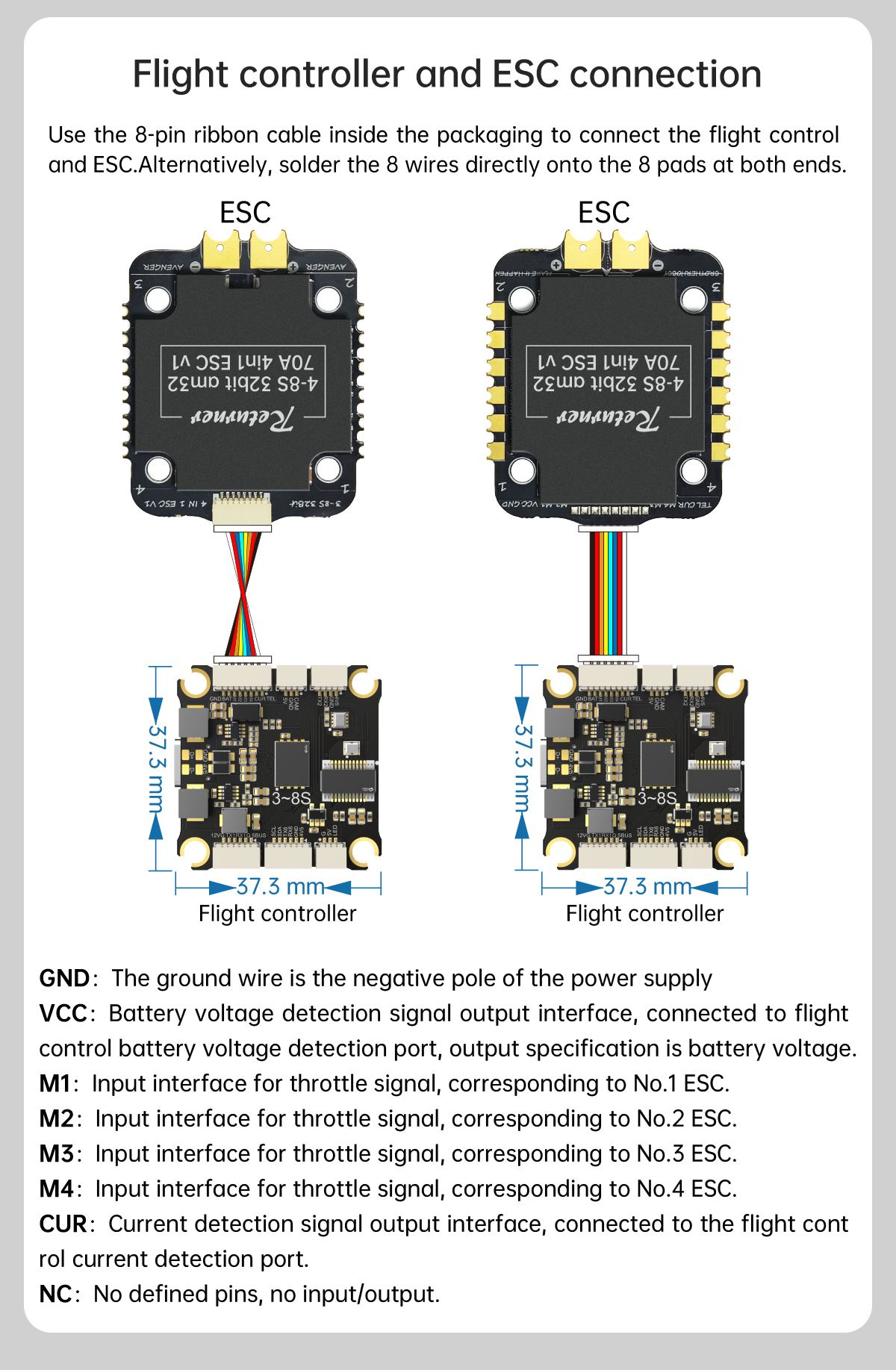

Pad CUR ESC outputs:
M1-M8 LED:
Supports direct insertion and soldering of adjustable LEDs Target firmware:
betaflight_4.5.1_STM32F7X2_BROTHERHOBBYF722 Receiving:

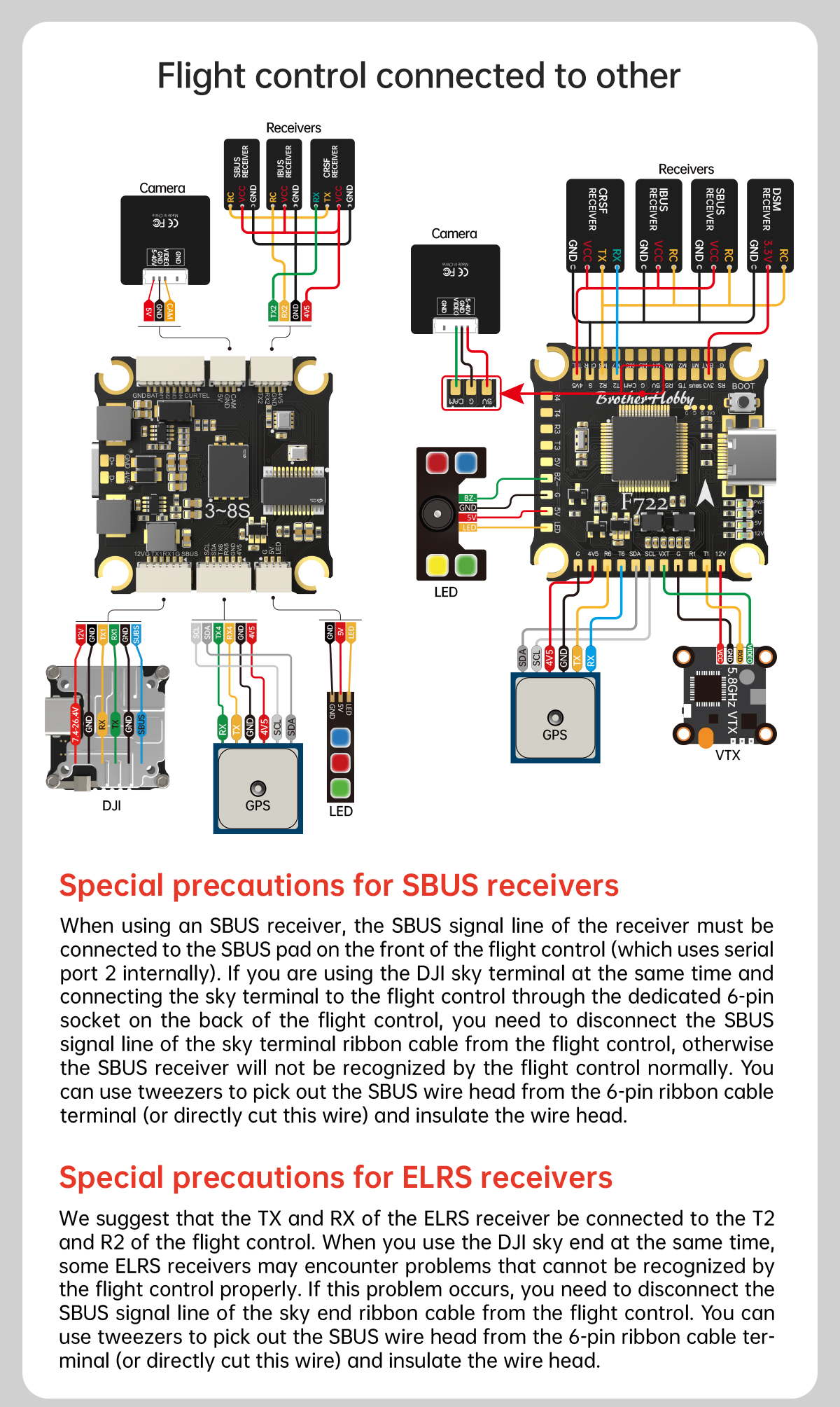

SBUS, IBUS, DSM2/X, TBS, CRSF. Supports direct insertion and welding Buzzer:
support RSSI:
support Weigh:
8.6g GPS magnetometer interface:
Supports direct insertion and welding CAM camera interface:
Supports direct insertion and welding DFU button:
support Image transmission:
Supports direct insertion and welding Debugging interface:
support
