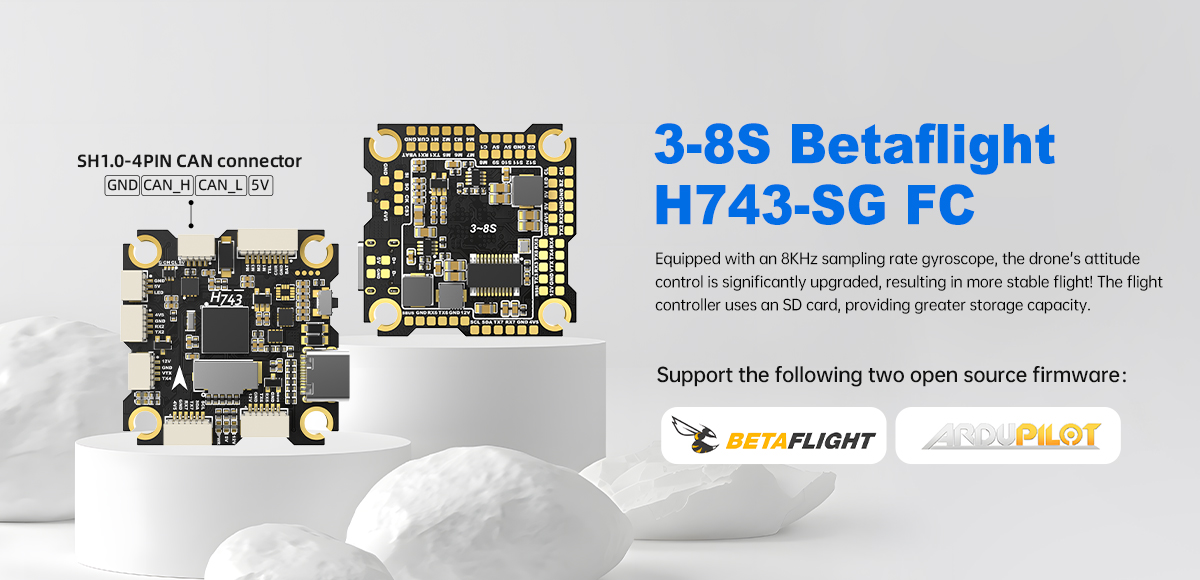

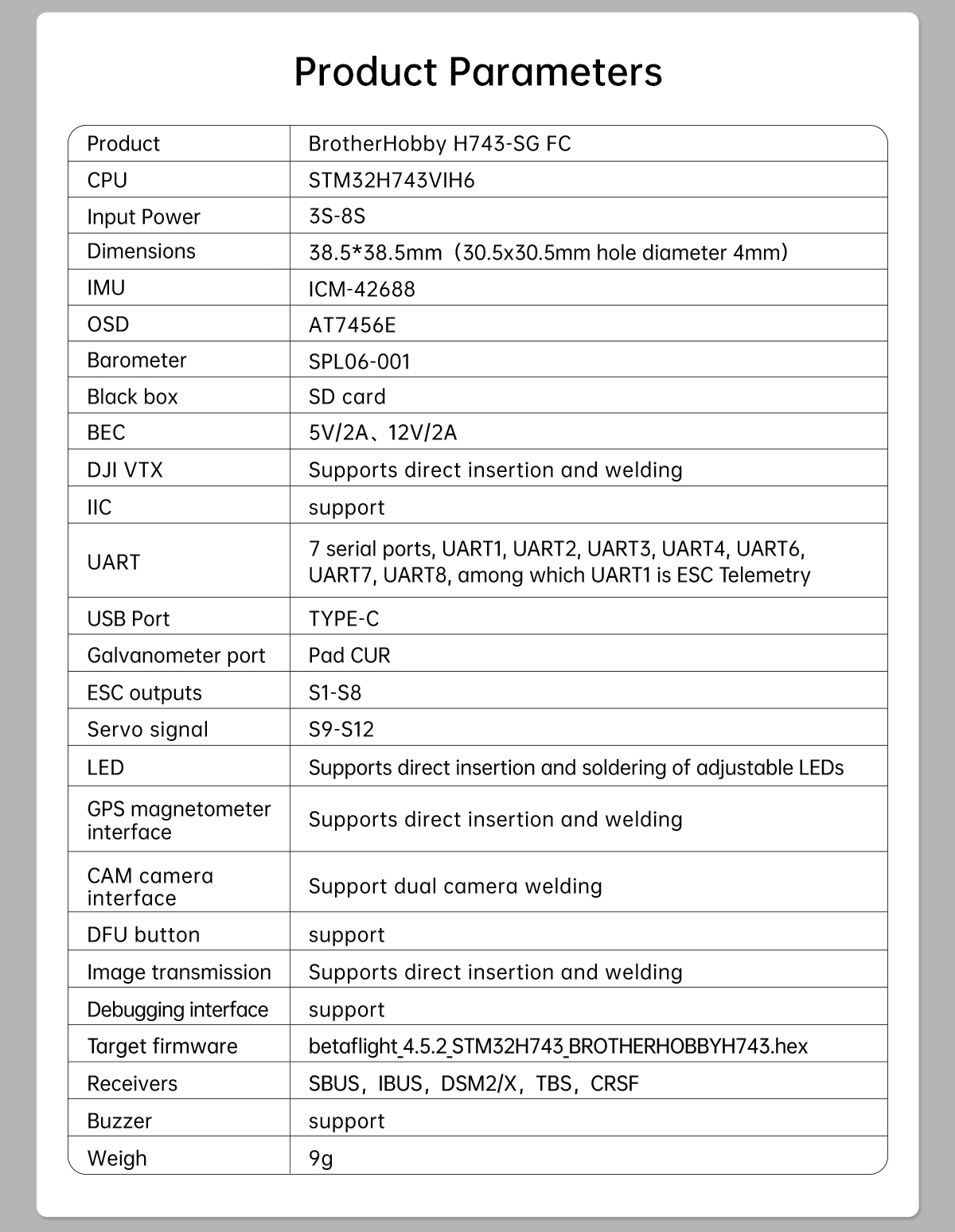

CPU:
STM32H743VIH6 Input Power:
3S-8S Dimensions:
38.5*38.5mm（30.5x30.5mm hole diameter 4mm） IMU:

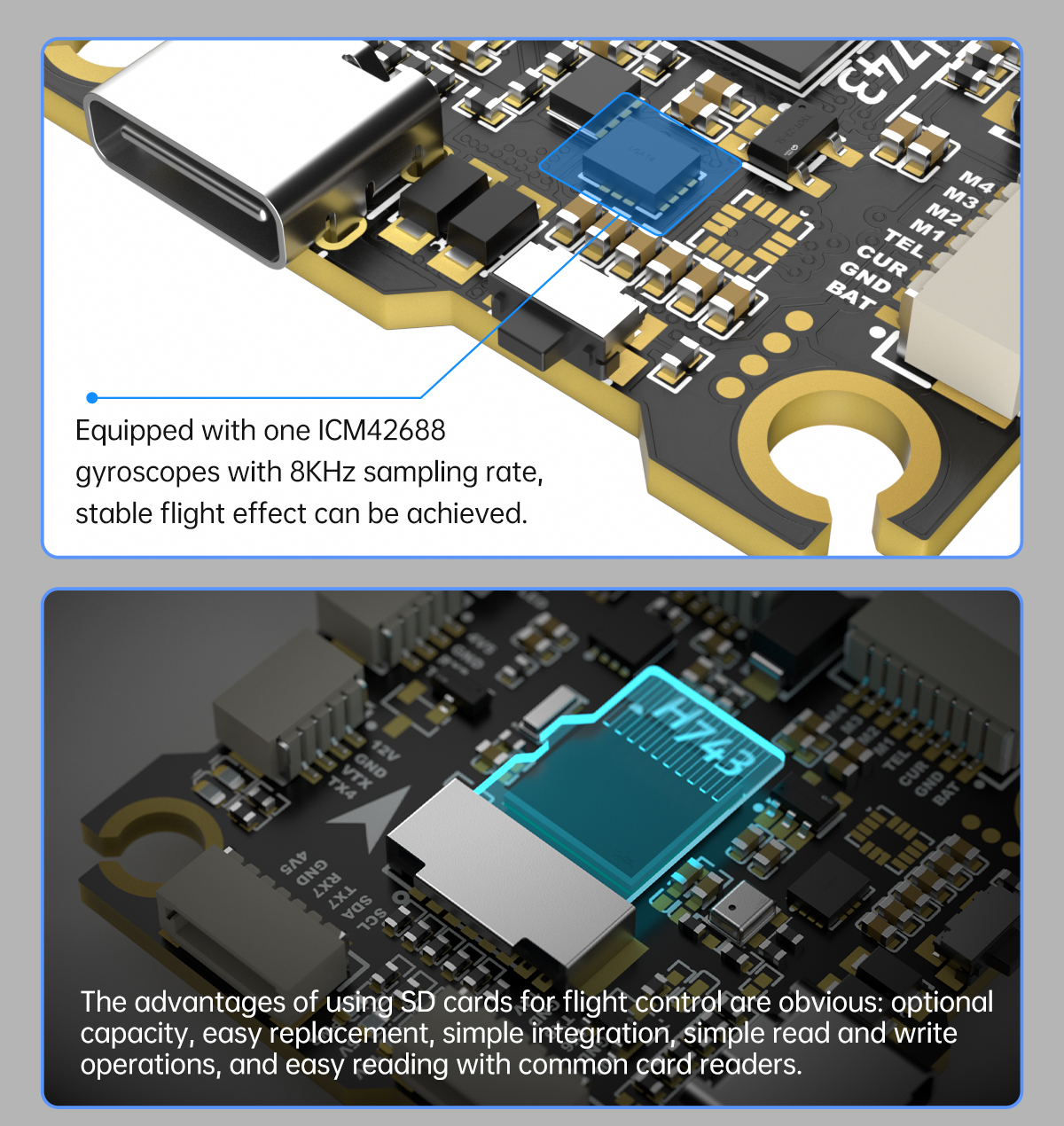

ICM-42688 OSD:
AT7456E Barometer:

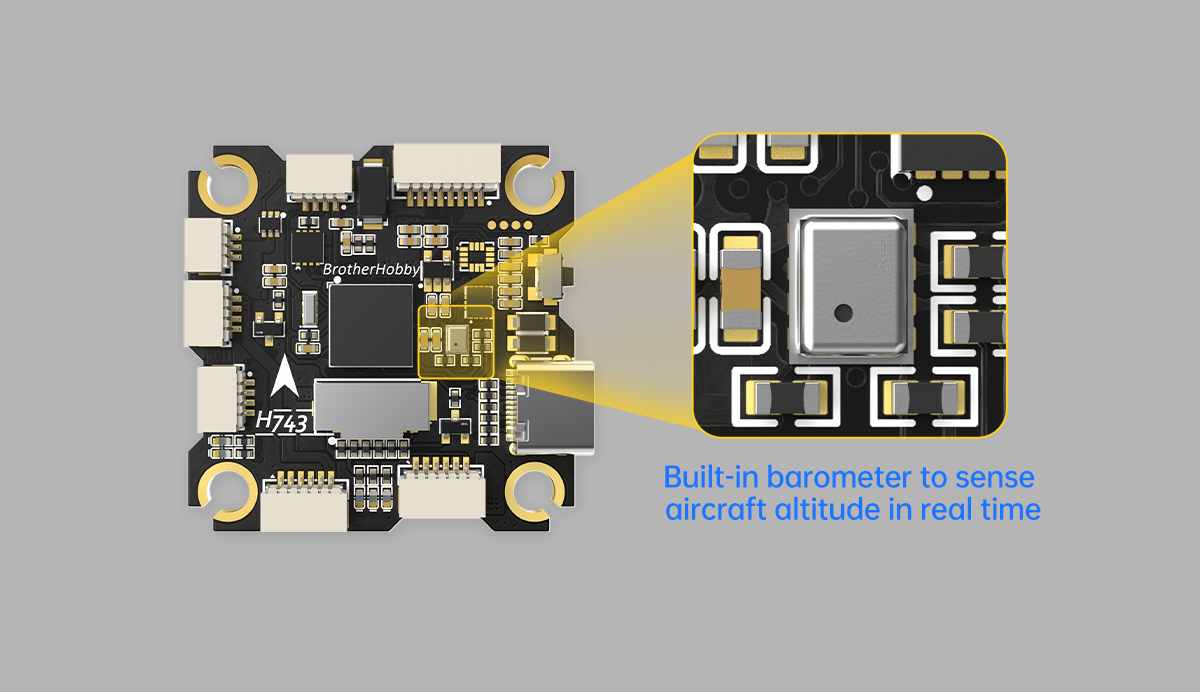

SPL06-001 Black box:
SD card BEC:

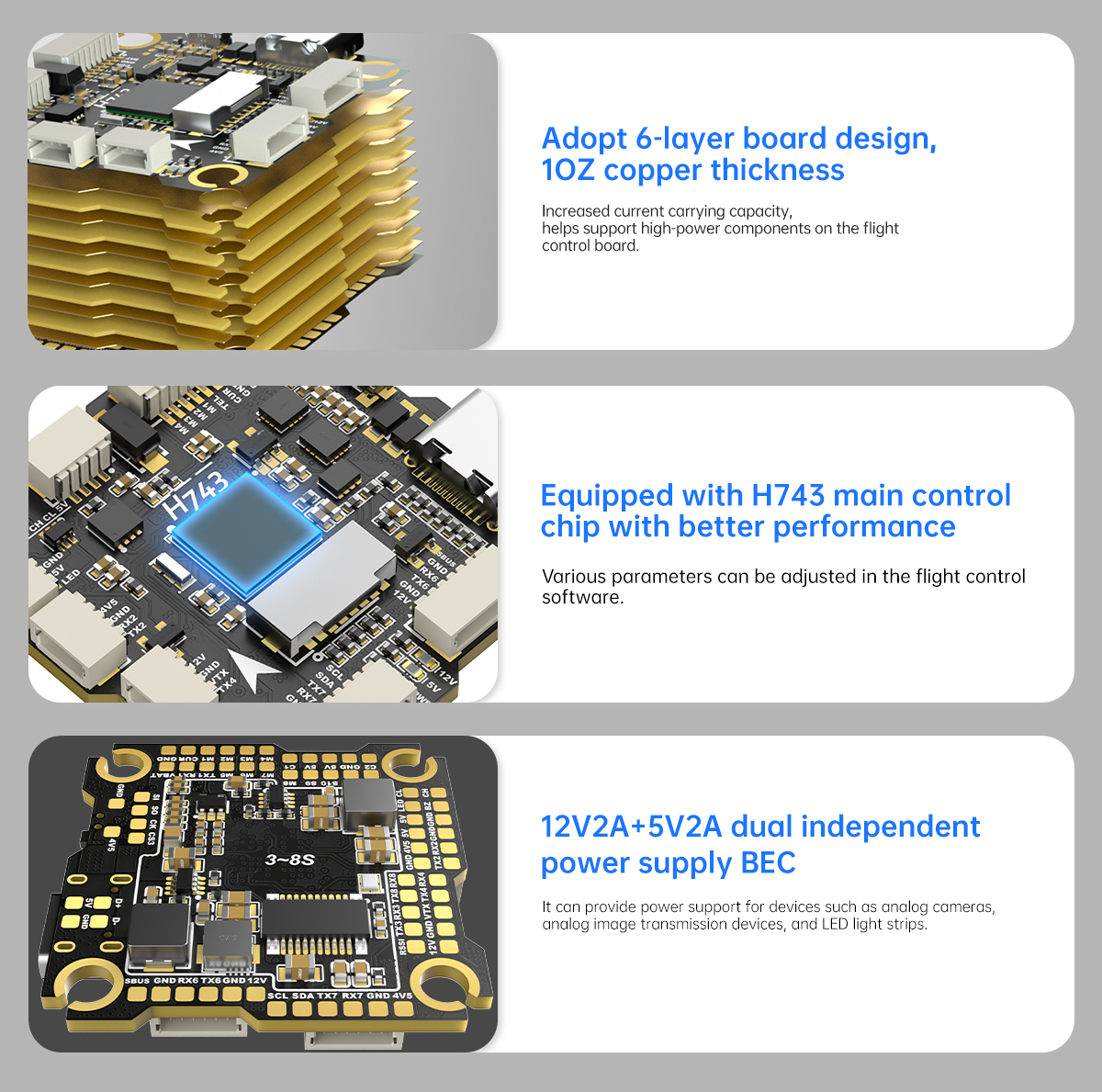

5V/2A、12V/2A DJI:
Supports direct insertion and welding IIC:
YES Telemetry:
7 serial ports, UART1, UART2, UART3, UART4, UART6, UART7, UART8, among which UART1 is ESC Telemetry USB Port:
TYPE-C Galvanometer port:

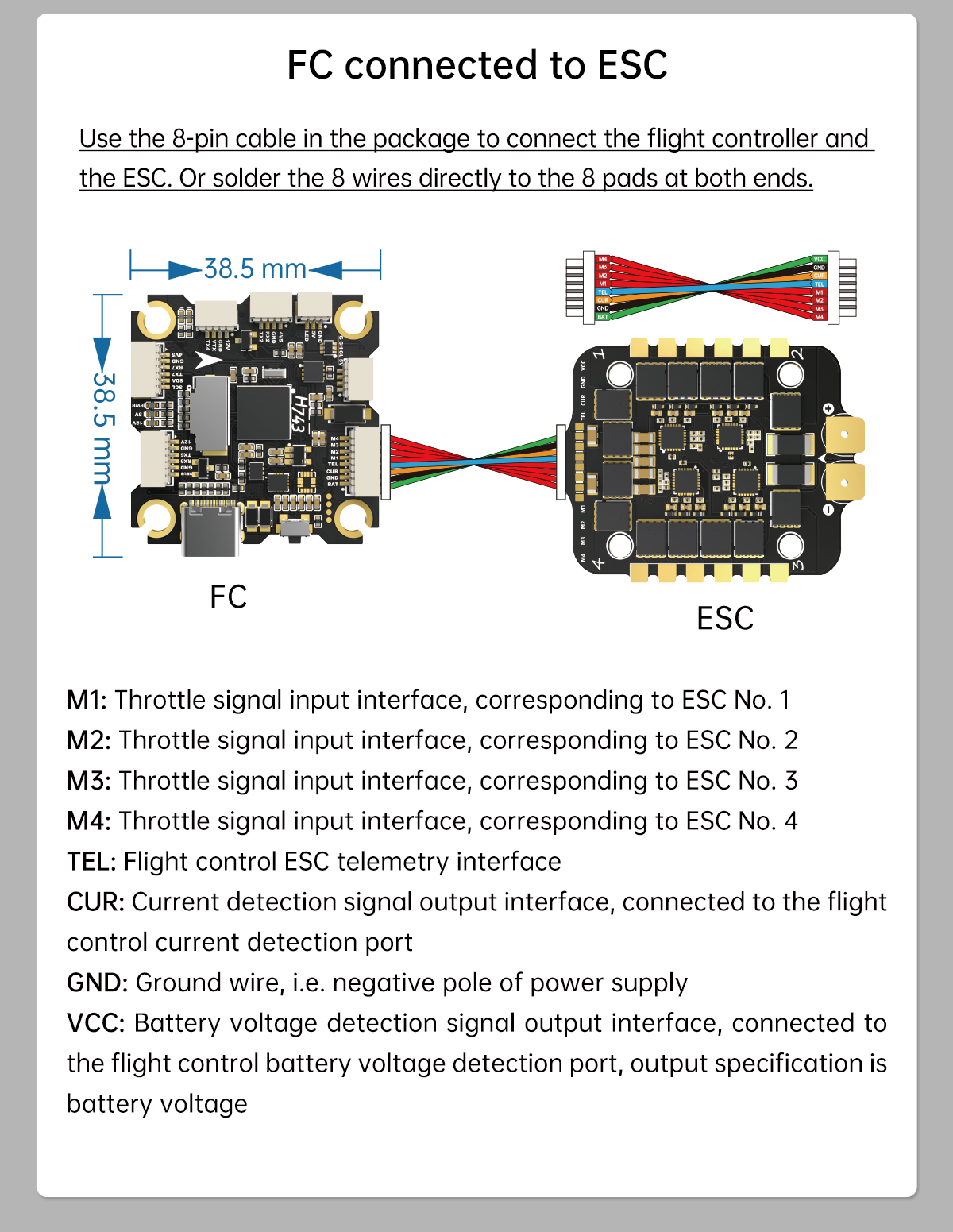

Pad CUR ESC outputs:
S1-S8 Servo signal:
S9-S12 LED.:
Supports direct insertion and soldering of adjustable LEDs GPS magnetometer interface:
Supports direct insertion and welding CAM camera interface:
Support dual camera welding DFU button:
YES Image transmission:
Supports direct insertion and welding Debugging interface:
support Target firmware:
betaflight_4.5.2_STM32H743_BROTHERHOBBYH743.hex Receivers:

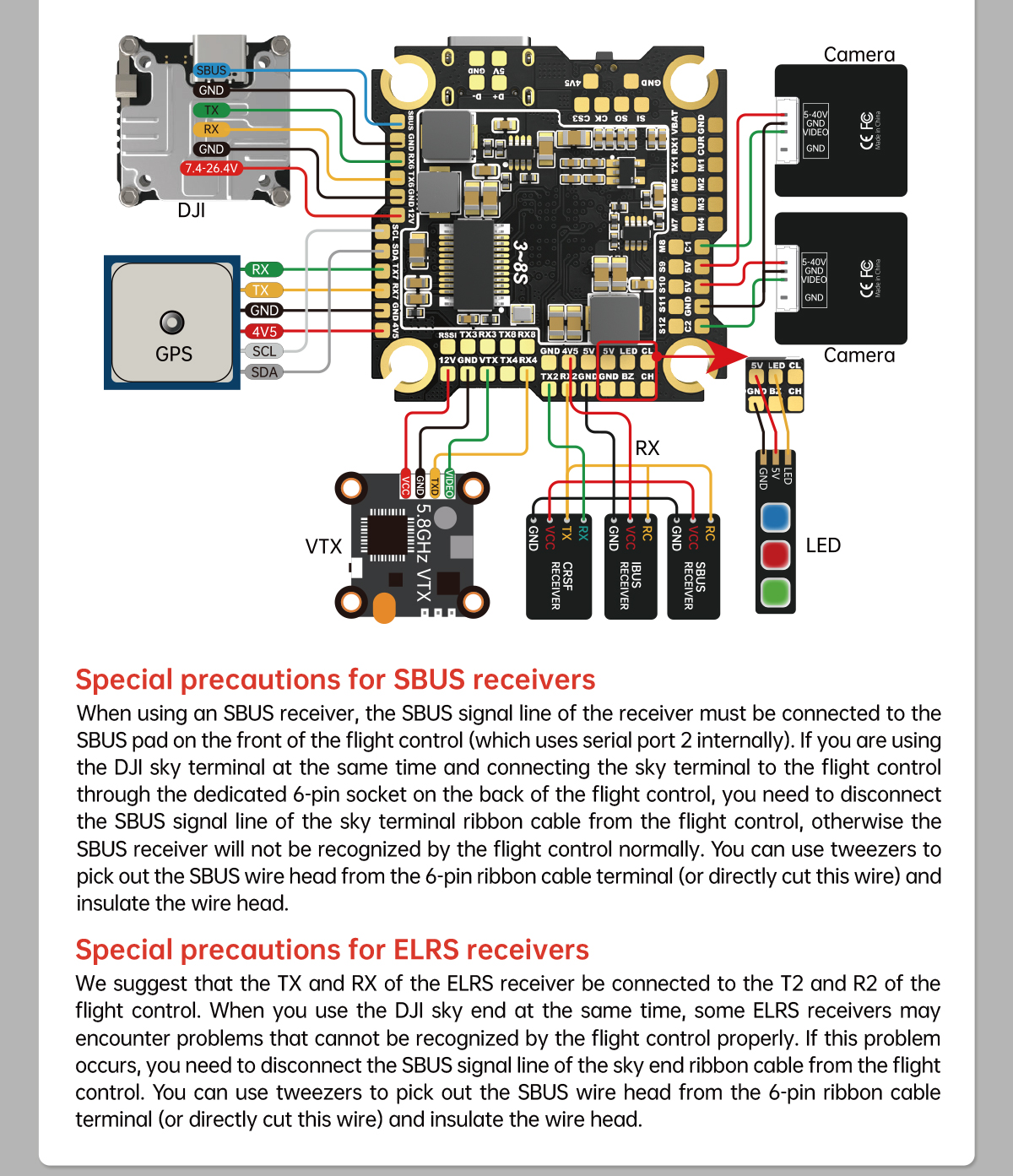

SBUS，IBUS，DSM2/X，TBS，CRSF buzzer:
support weigh:
9g
