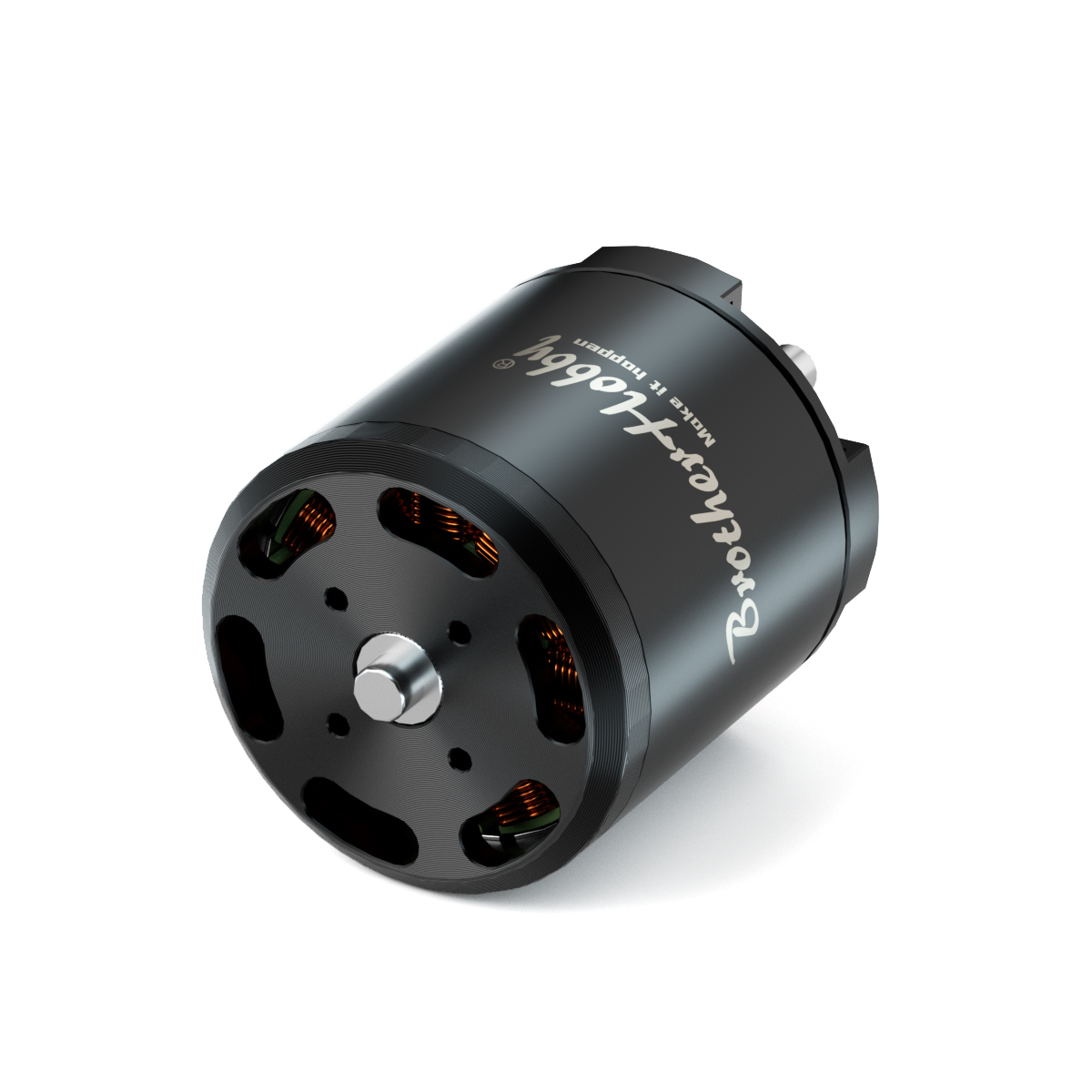

BrotherHobby Nipple 4235 230KV/330KV/360KV Motor(CW)
Have a question?
Price:
USD
USD
$0.00
SKU:
KV:
230
330
360
Ships From:
Warehouse 1
Quantity:
-
+
(
0
available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you want
X
Add to Favorite Items
Description

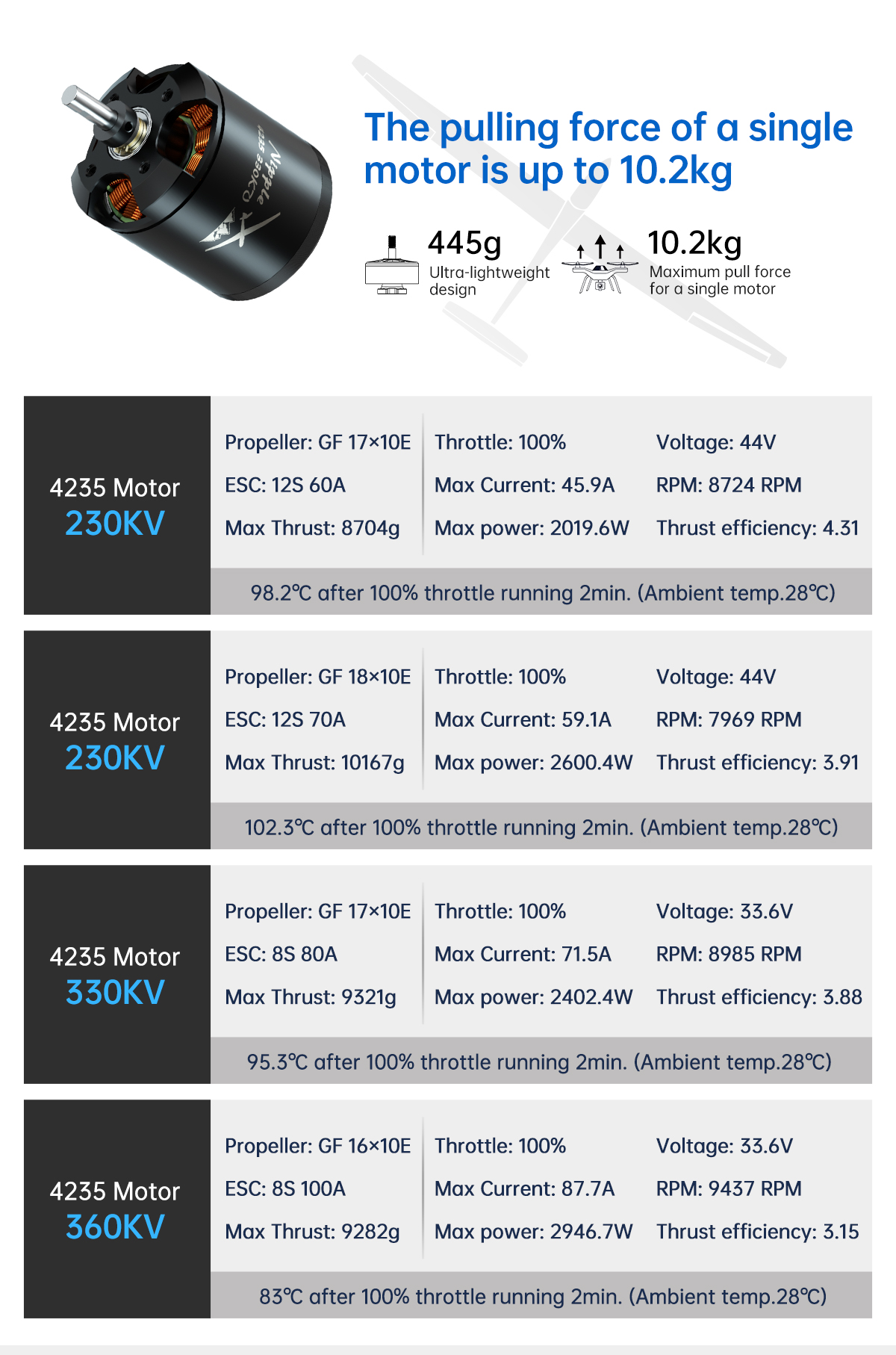

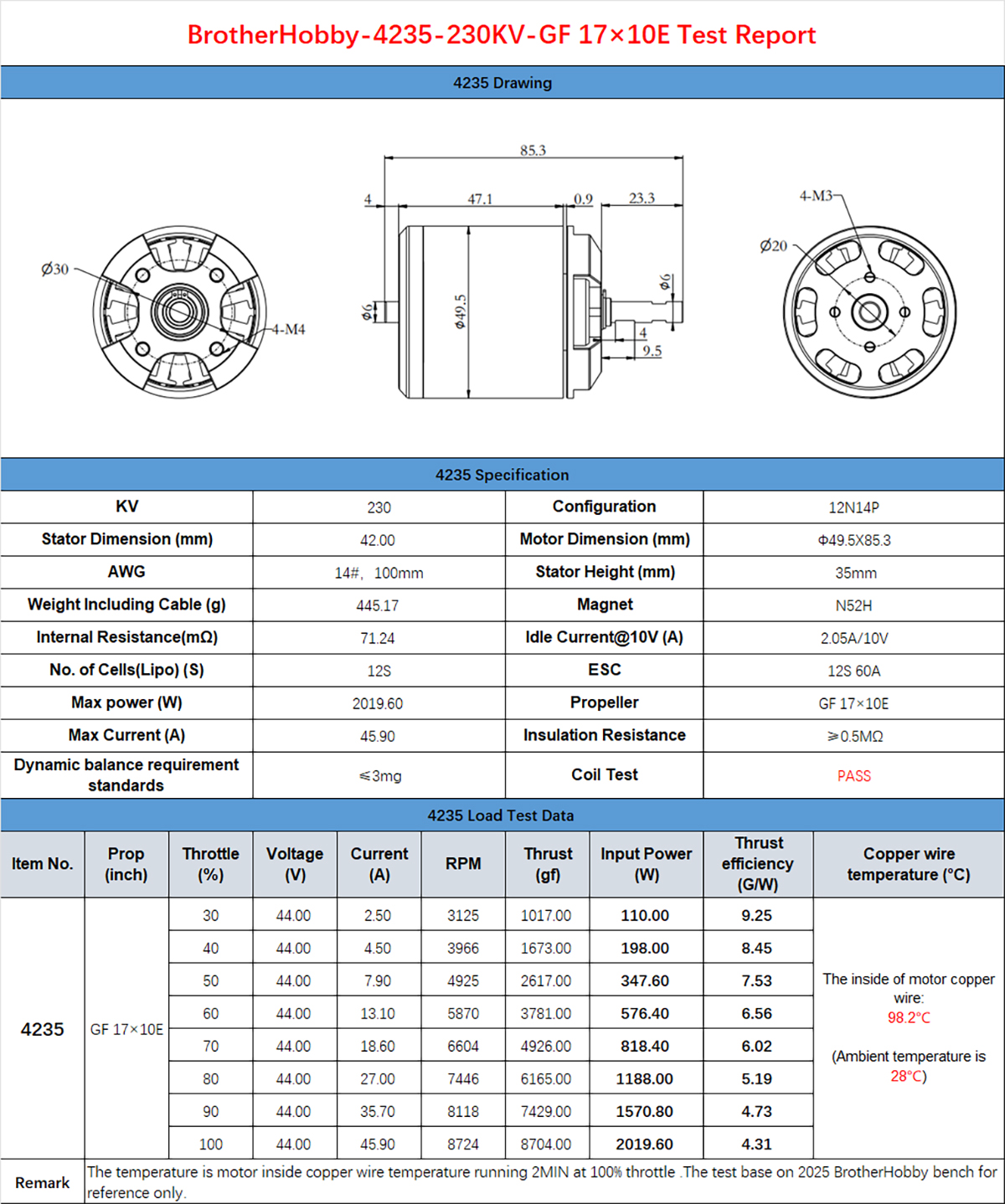

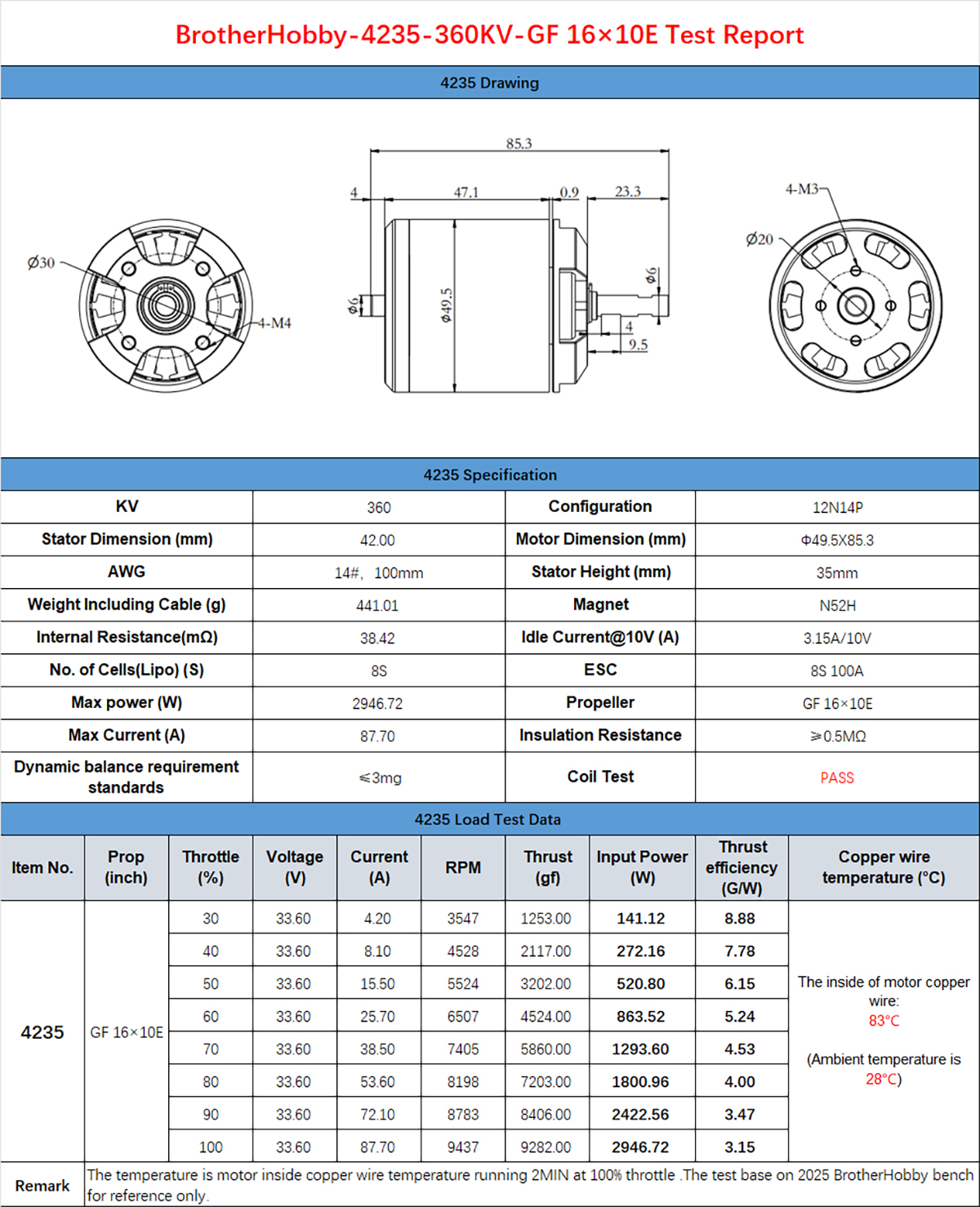

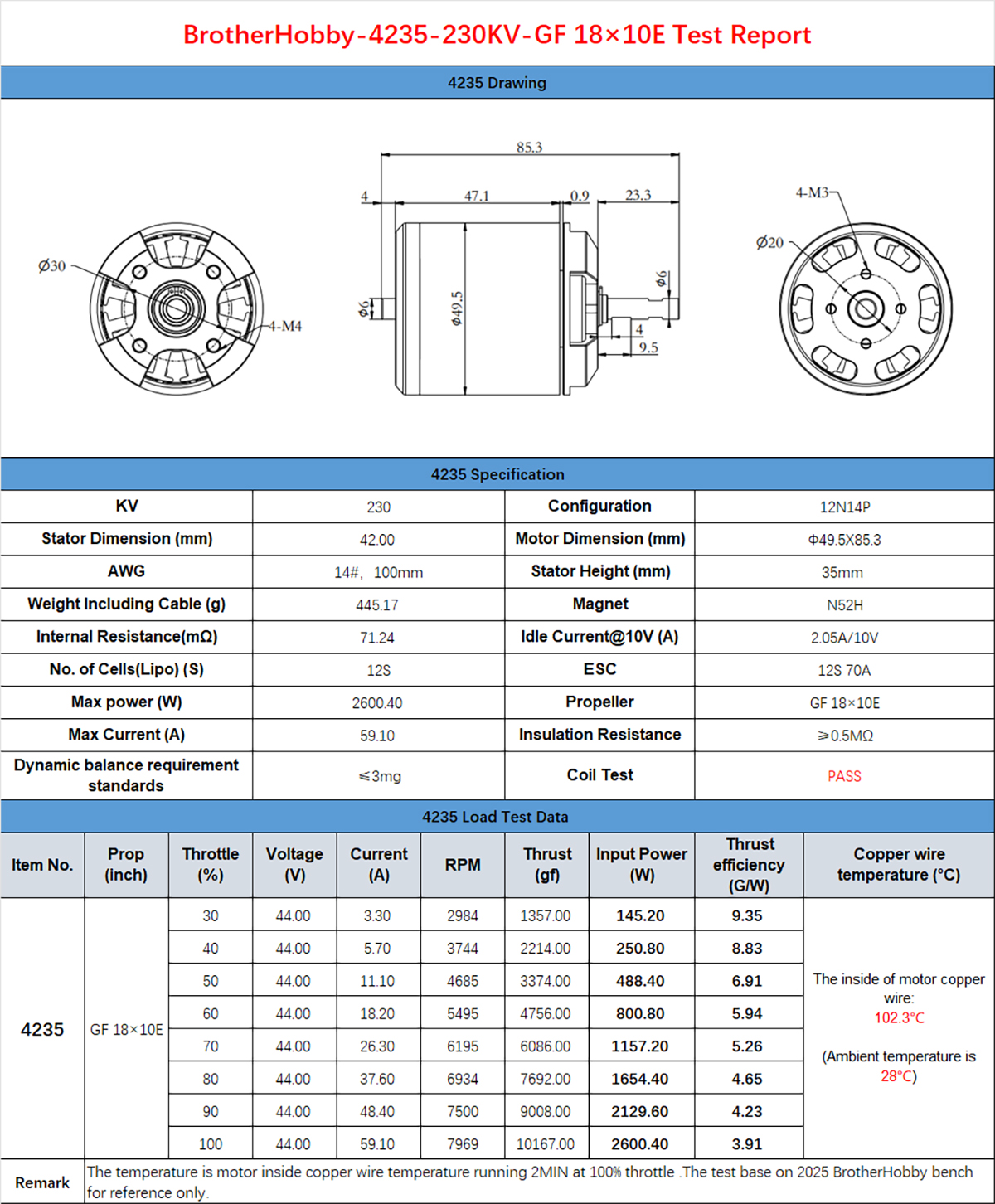

Test Data
Reviews

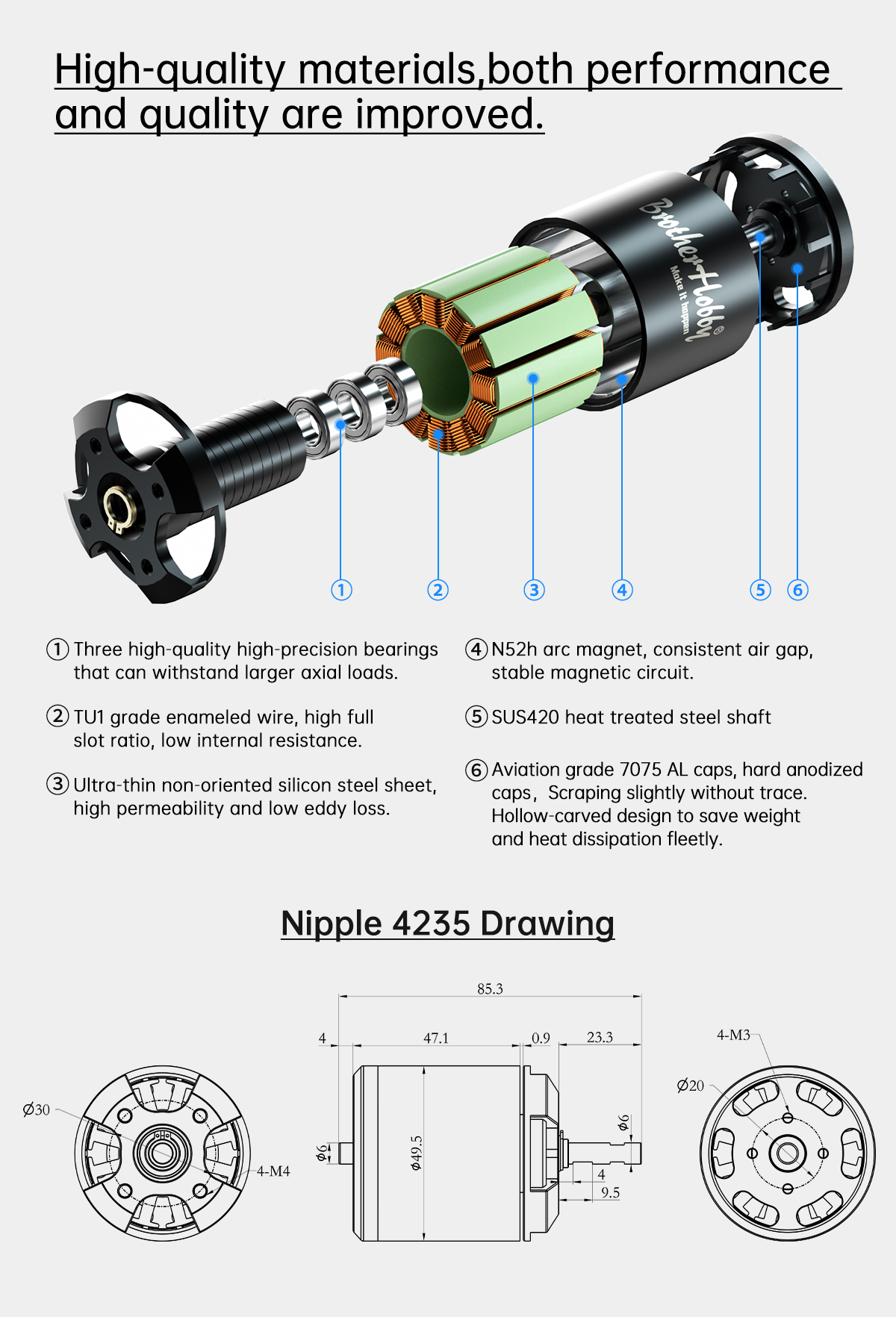

Specifications
KV:
230KV / 330KV / 360KV
Stator:
0.2mm Kawasaki silicon steel
Shaft:
SUS420
Bolt Pattern:
M4 (30X30mm)
Rotor:
N52H arc magnets
Wire AWG:
14# 100mm length
Base casing:
Al 7075
Configuration:
12N14P
No.of Cells(Lipo):
8-12S
Bearings:
Φ16*Φ8*5
Weight:
445g
Bell cap:
Al 7075
