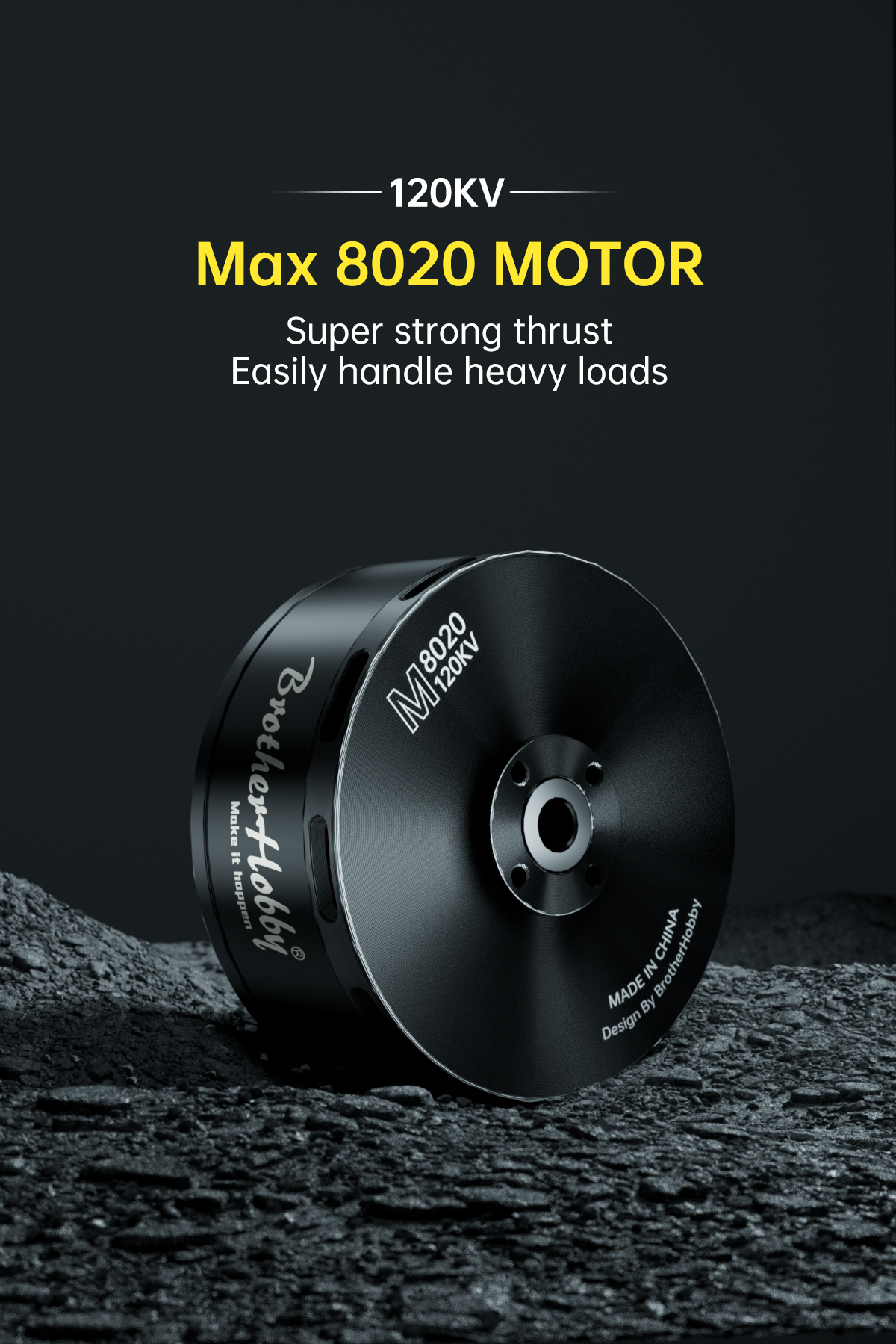

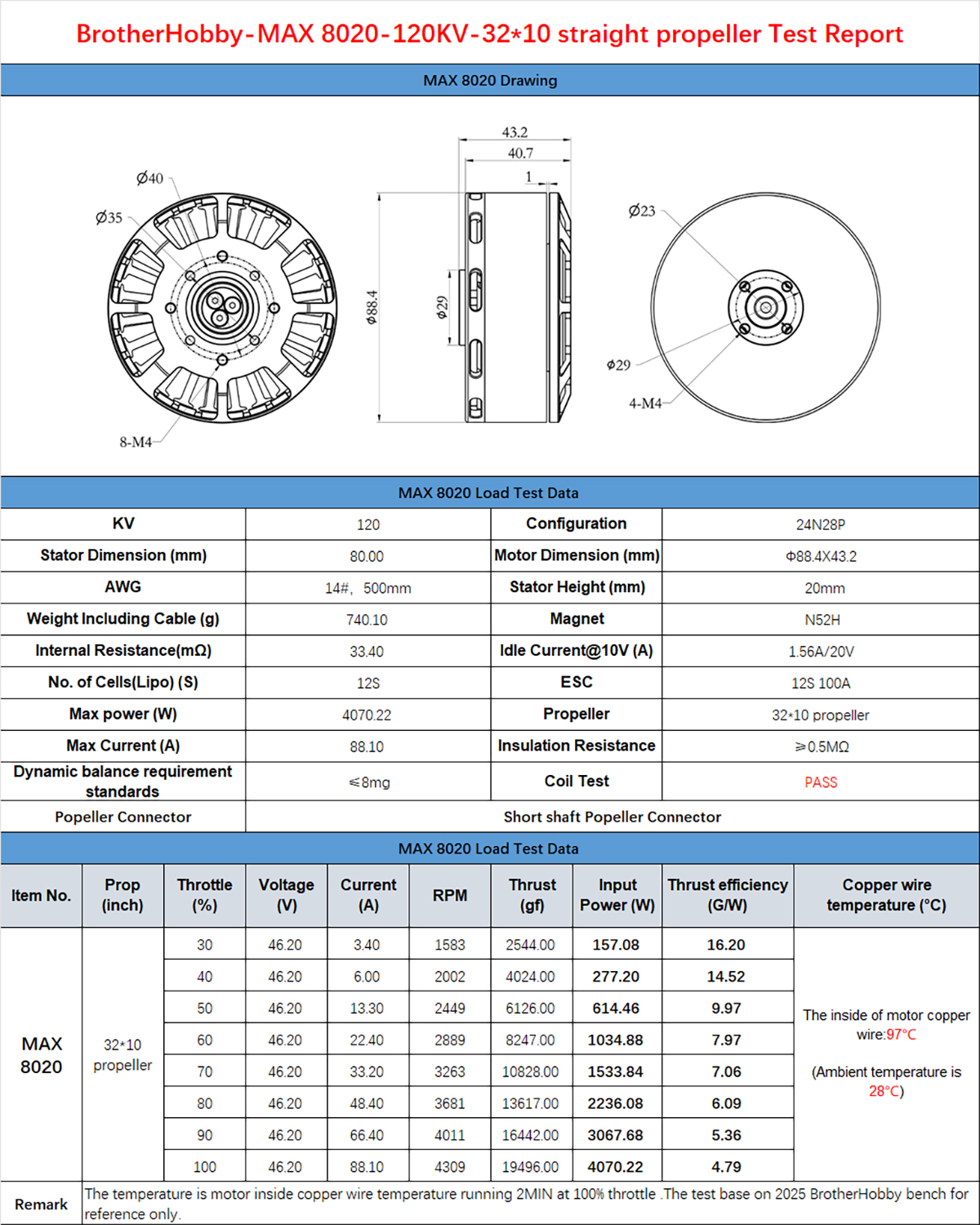

BrotherHobby MAX 8020-120KV Motor (CW)
Have a question?
Price:
USD
USD
$0.00
SKU:
Ships From:
Warehouse 1
Quantity:
-
+
(
0
available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you want
X
Add to Favorite Items
Description
Tech specs
Reviews

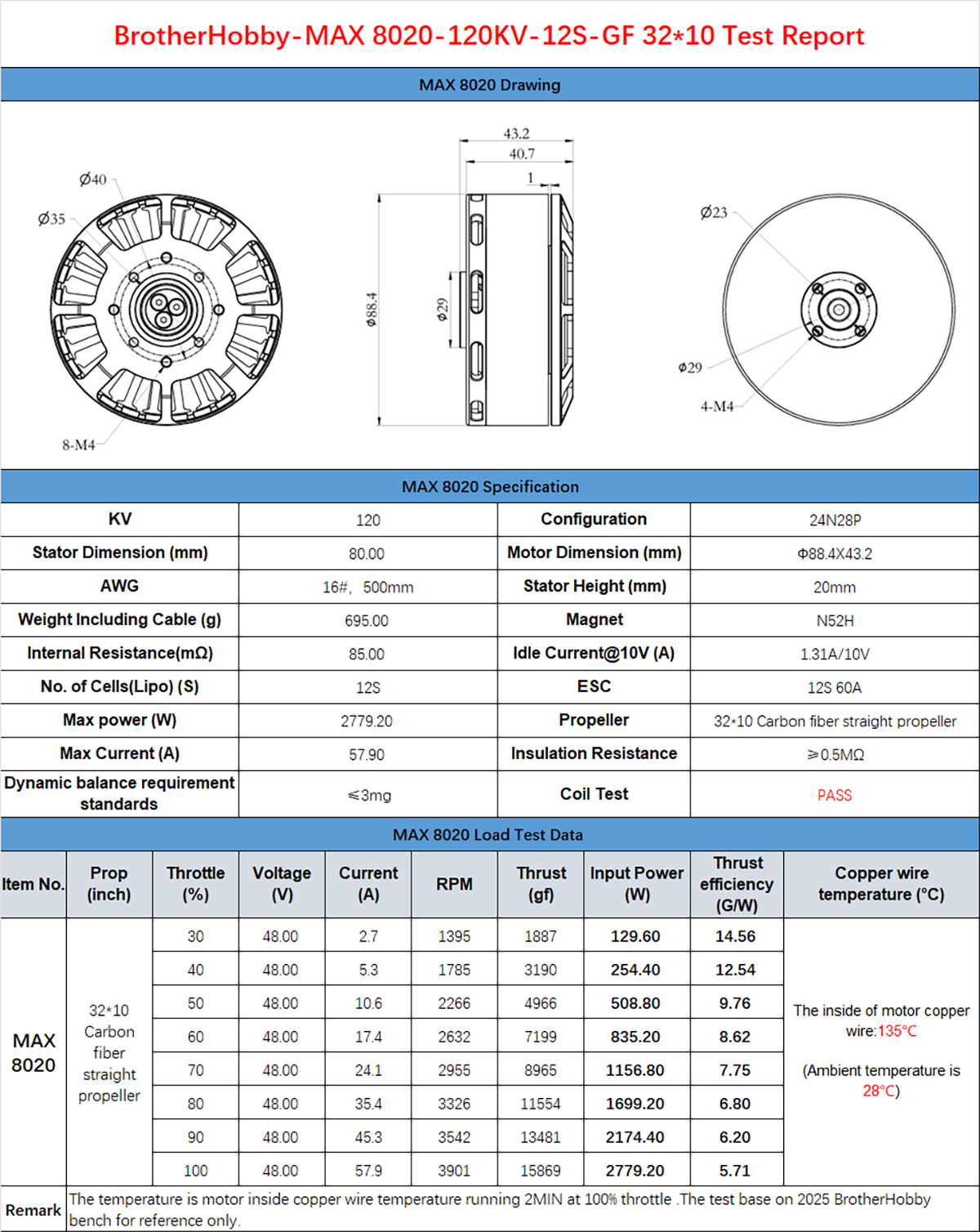

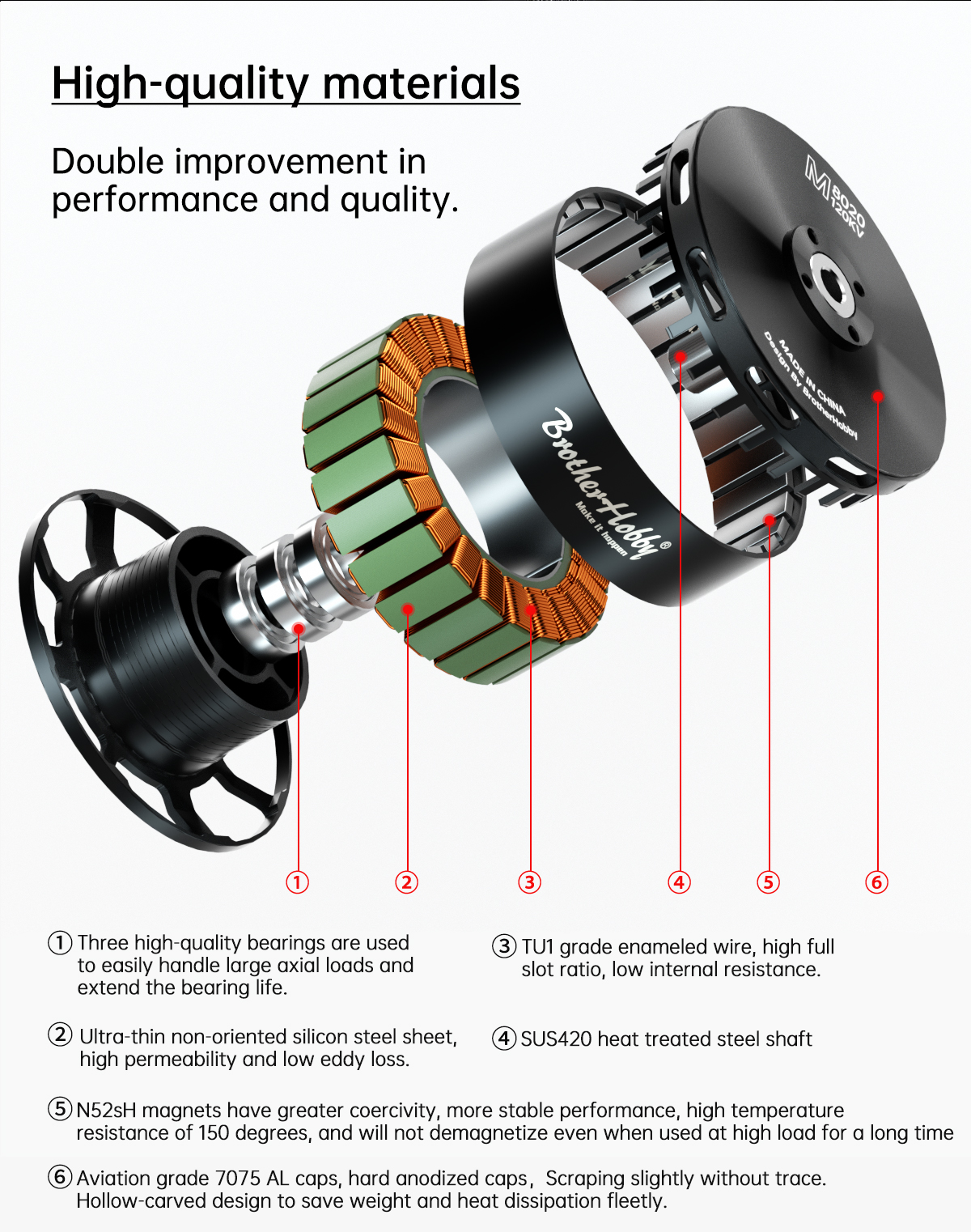

Specifications
KV:
120KV
Base casing:
Al 7075
Stator:
0.2mm Kawasaki silicon steel
Configuration:
24N28P
Shaft:
SUS420
No.of Cells(Lipo):
12S

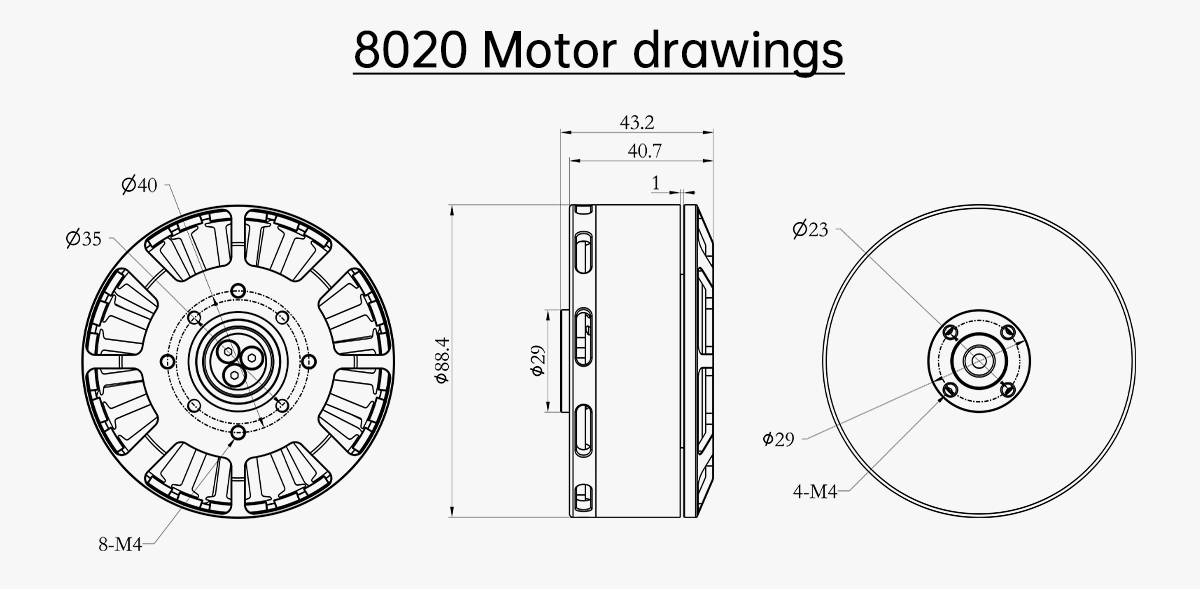

Bolt Pattern:
M4 (35X35mm);M4(40X40mm)
Bearings:
Φ24*Φ12*6

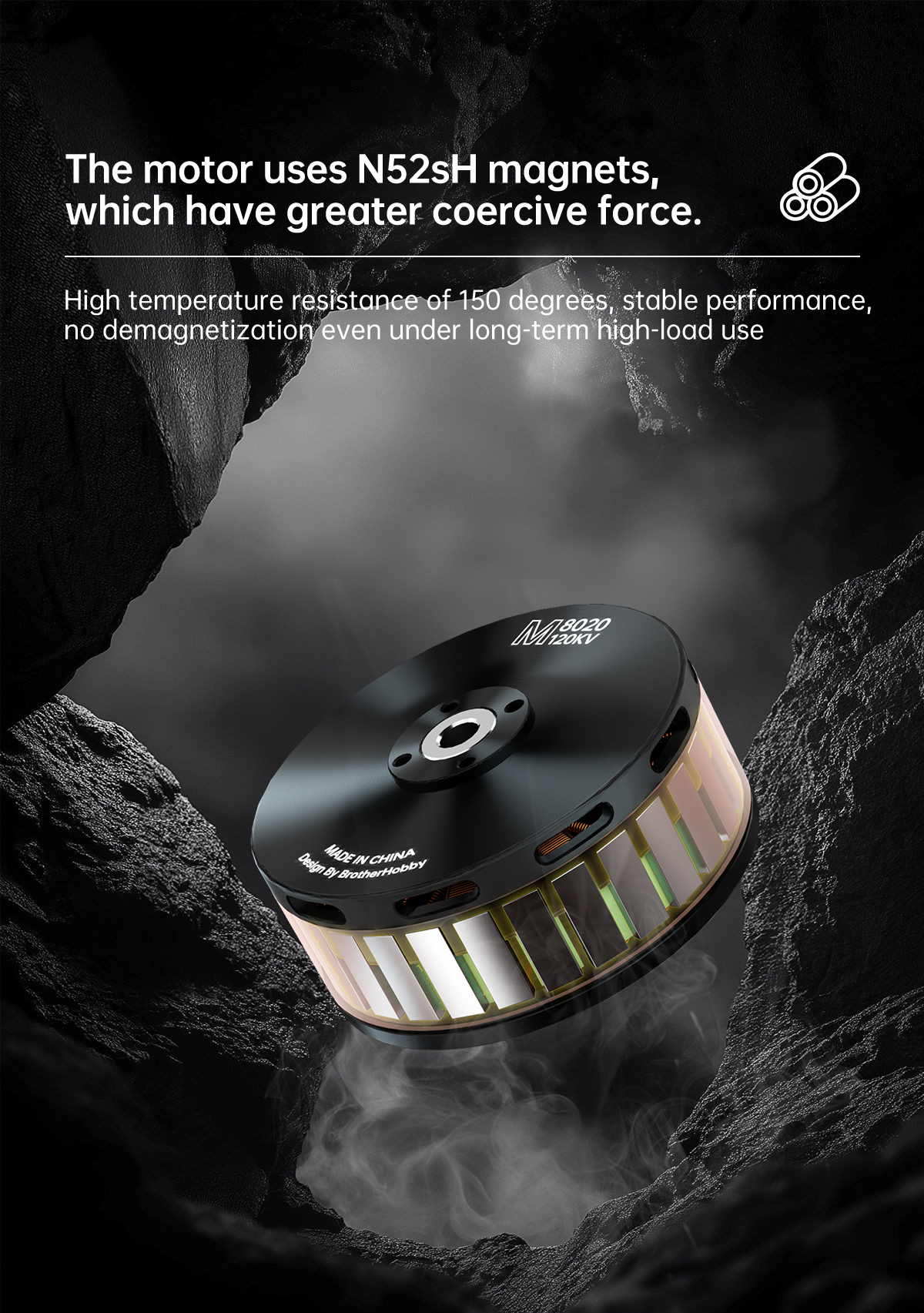

Rotor:
N52sH arc Magnet
Weight:
695g with 50cm SR wires
Wire AWG:
16# 500mm Length
Bell cap:
AI 7075
